This is a 2/5 38' diameter dome, (1000 s.f.) built with prefinished panels, including insulation, consisting of Cellutex & Reflectix, plus a roofing material called Peel & Seal.  Kits & books are available, which include cut and drilled lumber for framing, along with patterns for insulation and roof sheathing.  For more information contact me at: roconroy@aol.com  or see following file for photos of construction of 38' dome.

Dome book & kit cosst.docx Dome book & kit cosst.docx
Size : 868.014 Kb
Type : docx
22' paper cut out pdf.pdf 22' paper cut out pdf.pdf
Size : 1093.399 Kb
Type : pdf

 22' Dome with single singe tracking solar collector

Solar panels and hot water panels on rotating tracking supports.

One hot water panel is for hot water heating and another is for slab heating with tubes in slab.

One fixed panel is for hot air heating.

Setting 22' diameter dome piers.docx Setting 22' diameter dome piers.docx
Size : 3082.879 Kb
Type : docx
Assembling 22' Diameter Dome.docx Assembling 22' Diameter Dome.docx
Size : 3266.907 Kb
Type : docx
Solar Hot Water Collector.docx Solar Hot Water Collector.docx
Size : 2696.321 Kb
Type : docx
Solar Radiant Heat Floor System.docx Solar Radiant Heat Floor System.docx
Size : 781.22 Kb
Type : docx
https://www.youtube.com/watch?v=eOwVx5ZS6ig&feature=youtu.be
https://www.youtube.com/watch?v=PvBj5tnSeGU&feature=youtu.be
38 dome construction.docx 38 dome construction.docx
Size : 2985.225 Kb
Type : docx

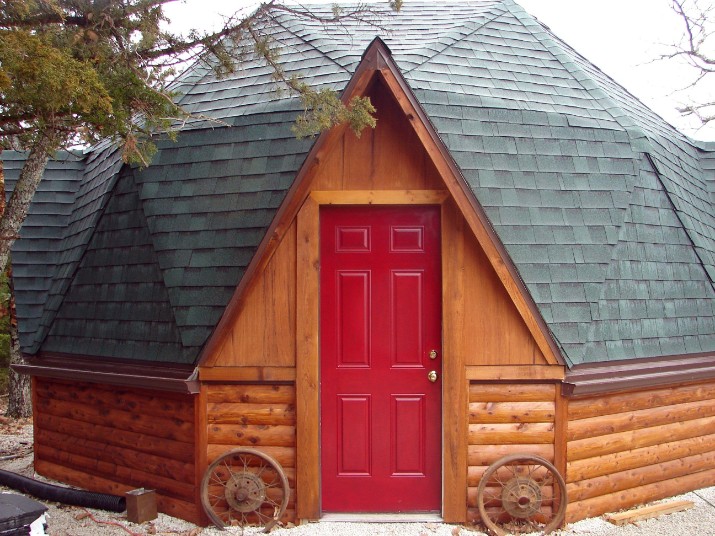

    • 24' Dome
    • Plans for construction of this 24' diameter dome are as follows.  Updated fabrication plans ($100) and 2nd floor plans ($40) can be obtained by mailing roconroy@aol.com  A frame kit can be purchased for $3125 FOB.
24bkpdf5.pdf 24bkpdf5.pdf
Size : 9049.227 Kb
Type : pdf

Construction of 14' Diameter small home dome with solar electric, solar hot water heated slab, and rain collection for a total material cost of $5500.  https://www.youtube.com/watch?v=XGT07598emA   Video of construction


Drain back hot water & solar panel mounted on rotating wood tracking frame  (material cost $330)

Hot water energy stored in insulated concrete floor.

                                                  Tracking support with solar cells and hot water collector.

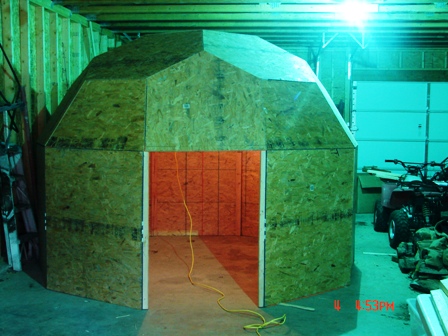

 The following is a 11' diameter emergency shelter built from OSB used as an exterior sheathing, using ripped 2x4s as edge connectors.  Total cost was less than $100.  Built by Chris Hampton, with design and cut out patterns done by Mountain Truss. The structure will require a treated base board plus a final entry panel installed with oblong opening cutout.  For short term, emergency conditions, blue plastic can be used as an exterior weather proofing, but the structure has the strength to allow application of standard roofing, and the insulation can be done on the inside with an application of Reflectix done at a later date.  The structure can be disassembled and stacked with a height of less than 18 inches, and a foot print of 4' x 4'.  This structure was assembled by a single individual using a screw gun in approximately 2 hours.  The connectors are cut 4 inches shorter than the edges they connects, and there are three different angle settings used in the connector fabrication.  The angles are shown on the overall 3D drawing.  You can use a reflective elastomeric paint for the roofing, but you have to use a quick setting primer, as the OSB has a tendency to swell when in contact with water.  The edges then can be sealed with silicone caulk.

11' emergency dome shelter 04.zip 11' emergency dome shelter 04.zip
Size : 0.27 Kb
Type : zip
